12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck

Brand Name : sinotruck

Model Number : ZZ3317N3867W

Certification : ISO CCC

Place of Origin : JINAN

MOQ : 1 units

Price : USD 44000~47000

Supply Ability : 50 units per week

Delivery Time : 25~30 work days

Packaging Details : nude

Drive wheel : 8x4

Engine capacity : >8L

Fuel type : Diesel

Condition : New

Gross vehicle weight : 31000

Capacity (load) : 31 - 40t

Emission standard : Euro 2

Contact Now

1. Classified by appearance:

Single axle dump trucks, double axle dump trucks, flat end dump trucks, pointed dump trucks, front

four rear eight dump trucks, double axle semi trailer dump trucks, and three axle semi trailer dump

trucks.

2. Classified by the link form between the lifting hydraulic cylinder and the carriage:

Direct push tilt mechanism; Linkage type tilt mechanism.

3. Classified by purpose:

Agricultural dump trucks, mining dump trucks, garbage dump trucks, coal transportation dump trucks,

construction machinery dump trucks, and sludge dump trucks.

4. According to the different driving modes, it can also be divided into 6x4, 8x4 dump trucks, and semi

trailer dump trucks.

5. According to different uses, it can also be divided into mining dump trucks, used for transporting coal

mines, sand and gravel; Sanitation and greening dump trucks, used for transporting garbage, etc.

6. There are also front lift and side flip dump trucks based on the direction of the car's overturning. At

present, there are also two-way rollover dump trucks, mainly used in construction projects.

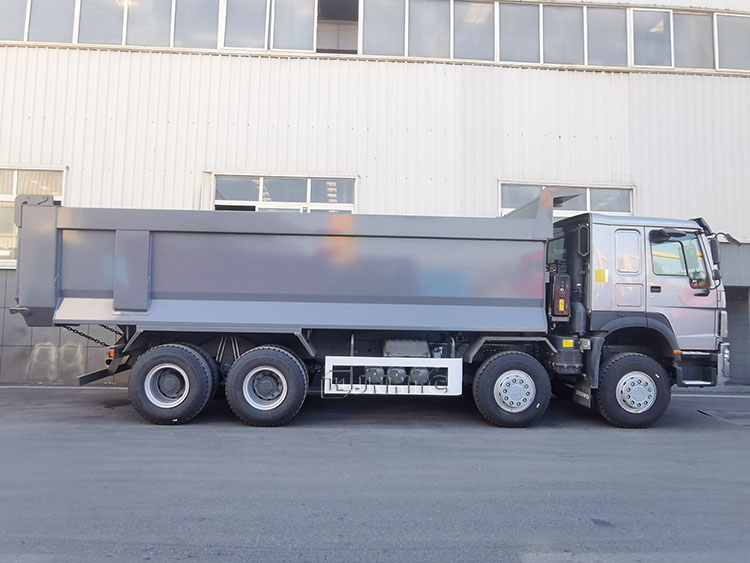

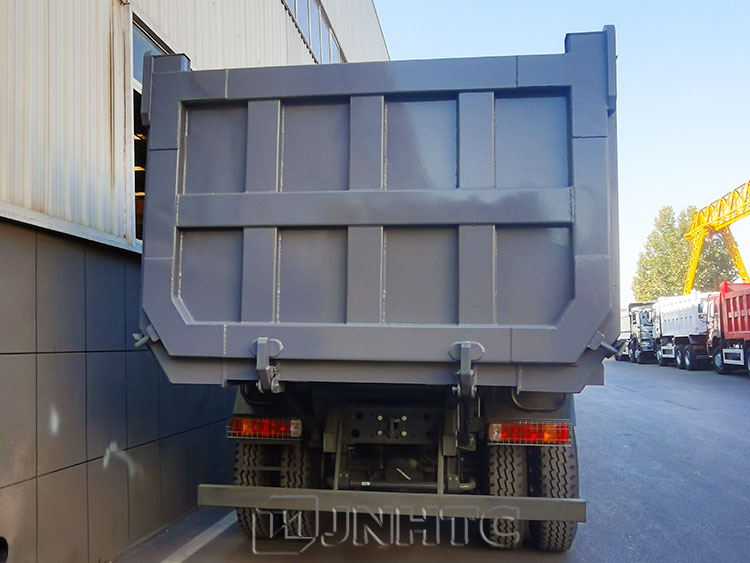

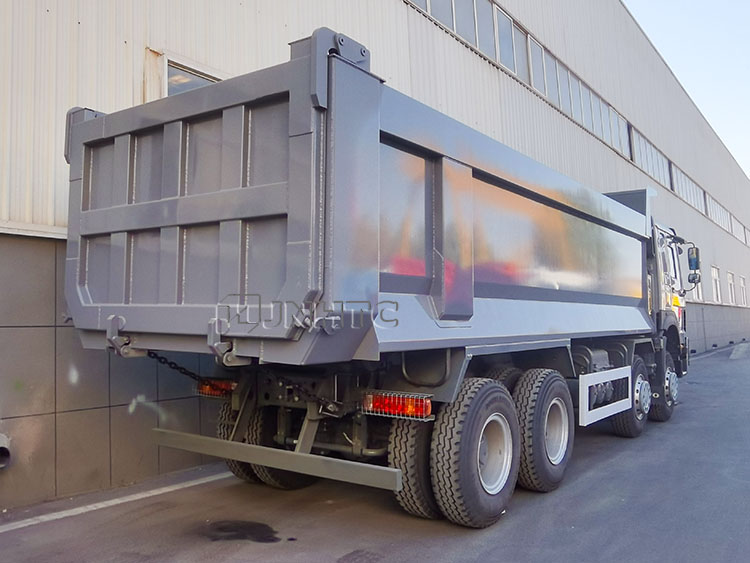

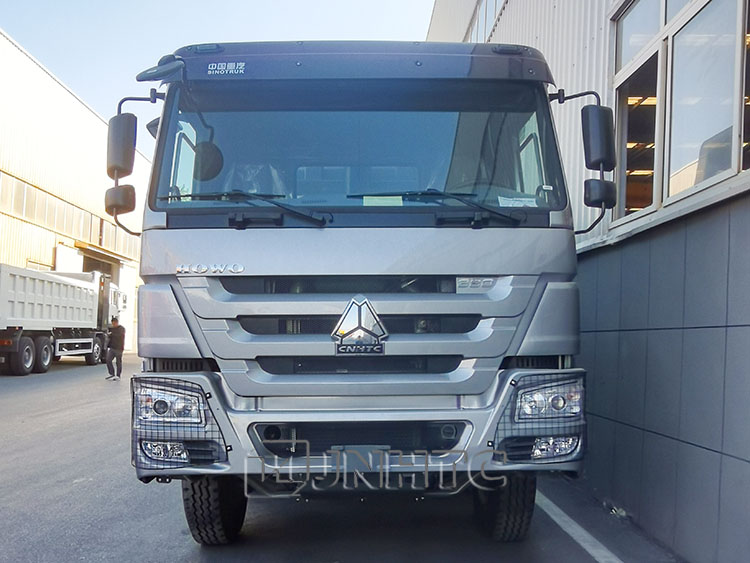

12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck

HOWO 8×4 dump truck

Howo 8*4 dump truck
Cabin HW70(NO BED);HW76(SINGLE BED;air -conditioning as standard
engine Model Wd615.69 Wd615.47
Fuel Diesel
Displacement 9.726L

Emission

Standard

EURII
Power 247(336)/2200 273(380)/2200
torque 1350/1100-1600 1500/1100-1600
transmission model HW19710 10 forward and 2 reverse
Control model MT
Front axle HF9 drum-type rated load of 9tons
Rear axle HC16 16tons speed ratio:3.93 4.42 4.8 5.73
Clutch Single-plate dry diaphragm spring clutch, diameter 430(B)mm, hydraulically operating with air assistance
steering ZF8118 left
Suspension Leaf spring suspension
Fuel tank 300L
tyres

12.00R20tube

Option:11.00-20tube 12R22.5tubless 315/80R22.5tubless

Wheel base(MM) 1800+3800+1350
Box sizes 7800*2300*1500
Box thickness Bottom 8mm and side 6mm


12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck

Advantage:

Due to the automatic tilting of the loading carriage at a certain angle for unloading, it greatly saves unloading

time and labor, shortens transportation cycles, improves production efficiency, and reduces transportation

costs. It is a commonly used specialized transportation vehicle.

12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck12 Wheeler Dump Truck Howo 31 Tons 8x4 380HP Left Hand Drive Dump Truck
