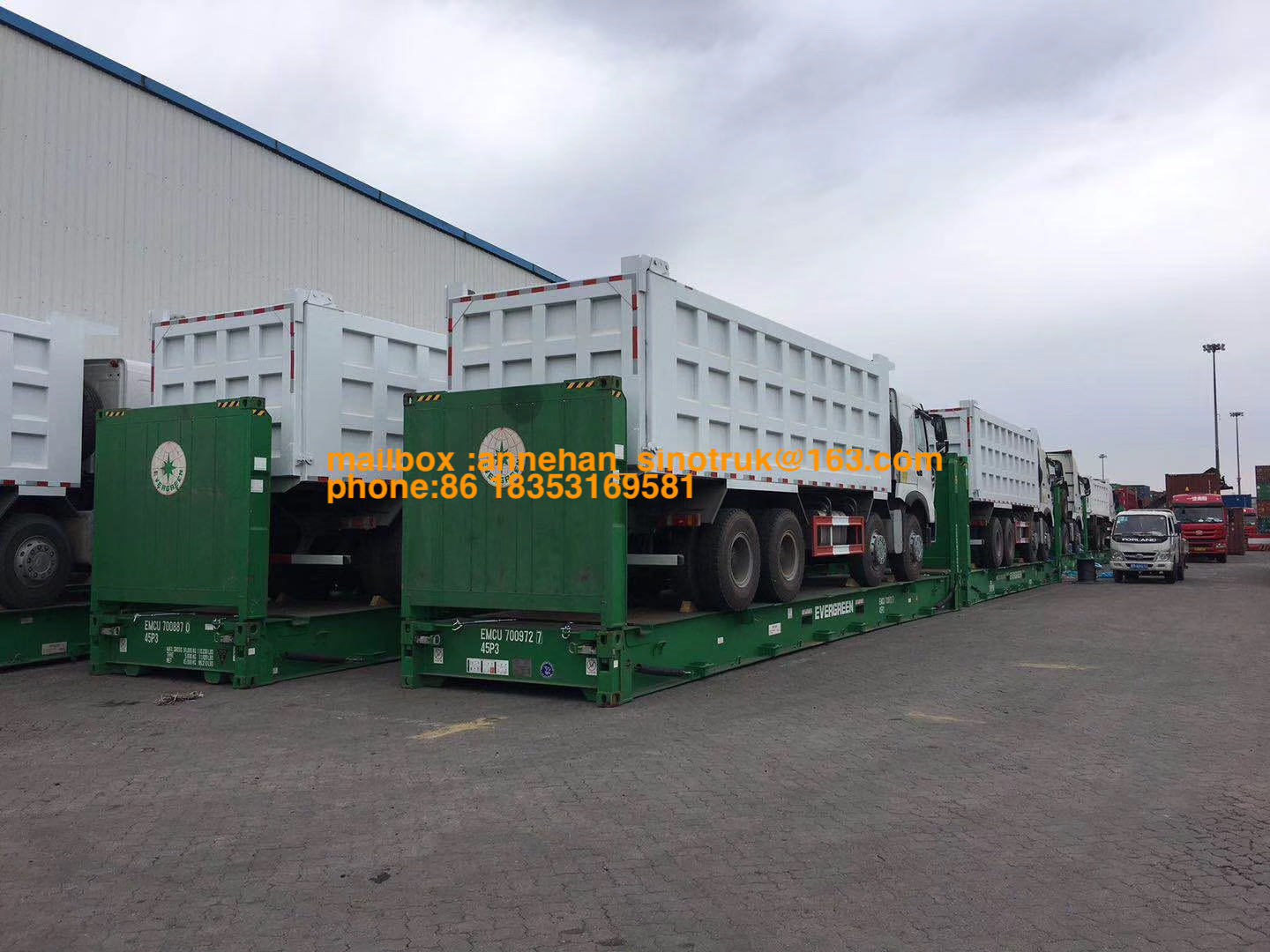

| Product Name | SINOTRUK HOWO 8X4 Dumper Truck |
| Chassis Model | ZZ3317N3867D1 |
| Driving Type | LHD (RHD is optional) |
| Cabin | HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
| Engine | Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: D10.38-40, Euro 4, 380 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
| Front Axle | HF9,1x9000 KGS Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 12.00R20, radial tyres with one spare tyre |
| Fuel Tank | 300L |
| Cargo Body | 7800*2300*1500 mm, 27 CBM, Floor 8mm Side 6mm |
| Overall Dimension | 11400*2550*3450mm |
